Rumah > Produk > Indikator Berat > BXK315A1-8 Red-LED Weighing Indicator For Standard Applications

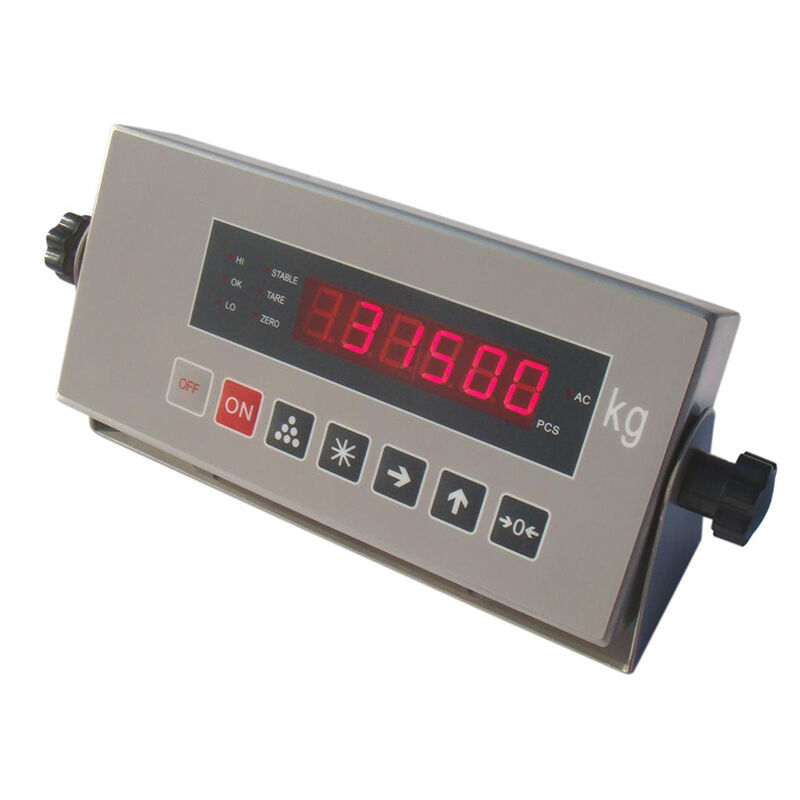

BXK315A1-8 Red-LED Weighing Indicator For Standard Applications

Rincian produk

Tempat asal: Cina

Nama merek: Brans

Nomor model: BXK315A1-8

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 buah

Waktu pengiriman: Satu minggu

Syarat-syarat pembayaran: T/T

Menyediakan kemampuan: 300 pcs/bulan

Dapatkan Harga Terbaik
Menyoroti:

Red-LED weighing indicator

,

Standard weighing indicator

,

Weighing indicator with warranty

Perumahan:
Baja Tahan Karat
Menampilkan:
6 digit, LED Merah 14,2 mm
Memuat Drive Sel:
4x350Ω atau 8x700Ω
Komunikasi (Std.):
Seri RS-232
Ukuran:
242×90×41mm
Aplikasi:
Skala platform elektronik, timbangan
Daya Tahan Baterai:
Hingga 30 jam (Terisi penuh)
Tetapkan Poin:
LO-OK-HI
Mode Khusus:
Hewan Menimbang, Menghitung, Tahan
Perumahan:
Baja Tahan Karat
Menampilkan:
6 digit, LED Merah 14,2 mm
Memuat Drive Sel:
4x350Ω atau 8x700Ω
Komunikasi (Std.):
Seri RS-232
Ukuran:
242×90×41mm
Aplikasi:
Skala platform elektronik, timbangan
Daya Tahan Baterai:
Hingga 30 jam (Terisi penuh)
Tetapkan Poin:
LO-OK-HI
Mode Khusus:
Hewan Menimbang, Menghitung, Tahan
BXK315A1-8 Red-LED Weighing Indicator For Standard Applications

Features


    1. Designed for consistent performance, this weighing indicator operates from 0°C to 40°C.

    2. The indicator is safe for storage in temperatures ranging from -25°C to 55°C.

    3. Built to endure, this weighing indicator tolerates relative humidity up to 85% non-condensing.

    4. Offering great mobility, the indicator provides up to 30 hours of operation on a full battery charge.

    5. This compact weighing indicator can drive up to 4 x 350Ω or 8 x 700Ω load cells.

    6. Data management is versatile with both manual and automatic accumulation on this indicator.

    7. The weighing indicator ensures accuracy over time with its programmable zero tracking feature.

    8. Signal quality is optimized by the programmable digital filter in this indicator.

    9. Unit flexibility is provided with selectable kg and lb options on the weighing indicator.

    10. Standard system connectivity is via an RS-232 serial interface on this indicator.

    11. The indicator offers an optional RS485 serial interface for expanded network options.

    12. Precision is enhanced as this weighing indicator's accuracy can be increased ten times.

    13. Specialized tasks like animal weighing are supported by this capable indicator.

    14. A practical hold function allows for stable reading capture on the weighing indicator.

    15. The indicator includes a counting function for efficient parts inventory management.

    16. Hardcopy documentation is simple with the integrated printer interface of this weighing indicator.

    17. Process control is enabled through the LO-OK-HI set point function on the indicator.


Dimensions(mm)



BXK315A1-8 Red-LED Weighing Indicator For Standard Applications 0

BXK315A1-8 Red-LED Weighing Indicator For Standard Applications 1


BXK315A1-8 Red-LED Weighing Indicator For Standard Applications 2






Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:


  1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
  2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
  3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
  4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
  5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
  6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
  7. We will arrange shipment through a reputable logistics service provider.


After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
