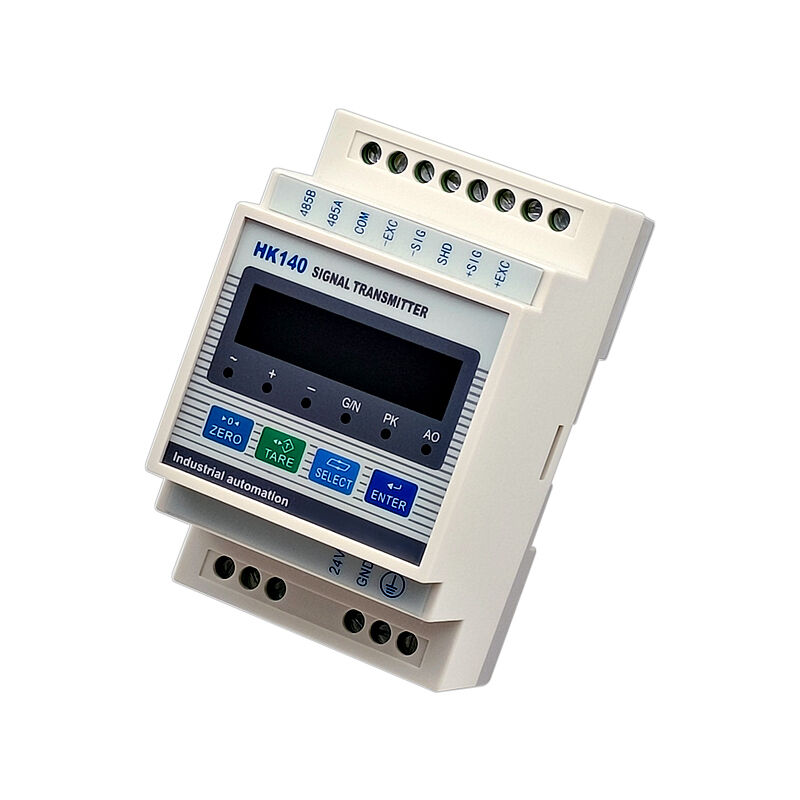

Compact Weighing Transmitter With Multi-Output & LED / OLED Display Options HK140
Compact Weighing Transmitter With Multi-Output & LED / OLED Display Options HK140
Compact Weighing Transmitter With Multi-Output & LED / OLED Display Options HK140
Compact Weighing Transmitter With Multi-Output & LED / OLED Display Options HK140

Compact Weighing Transmitter With Multi-Output & LED / OLED Display Options HK140

Rincian produk

Tempat asal: Cina

Nama merek: Brans

Nomor model: HK140

Dokumen: HK-140 Signal Transmitter-B...NS.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 buah

Waktu pengiriman: seminggu

Syarat-syarat pembayaran: T/T

Menyediakan kemampuan: 300pcs/Bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk
Menyoroti:

compact weighing transmitter with multi-output

,

weighing transmitter with LED display

,

OLED display weighing transmitter

Bahan perumahan:
SUS304 Perumahan baja tahan karat
Dimensi (P*L*T):
52mmx86.8mmx57.9mm
perlindungan kekayaan intelektual:
IP20
Suhu pengoperasian:
-10°~40°℃(14°~ 104 °F)Kelembaban:10%~95%; non-kondensasi
Catu daya:
+24VDC (±10%), daya <3W
Menampilkan:
Layar OLED titik penuh 0,96 inci 128*64, mendukung menu tampilan Cina dan Inggris
papan ketik:
4 tombol sentuh
Resolusi tampilan:
99.999
Sinyal masukan:
Sinyal tegangan diferensial 0~3mV/V (Sel beban pengukur regangan resistansi)
Kemampuan berkendara maksimal:
Mendorong hingga 1~4 sel beban (350Ω)
Tingkat Konversi A/D:
120Hz
Tegangan eksitasi:
5VDC
Masukan minimal:
0,6μV/hari
Pelabuhan komunikasi:
RS-485, Tingkat Baud 4800-19,200
Com. protokol:
MODBUS RTU, Lanjutkan ketik
Platform penimbangan:
platform analog lpc
Bahan perumahan:
SUS304 Perumahan baja tahan karat
Dimensi (P*L*T):
52mmx86.8mmx57.9mm
perlindungan kekayaan intelektual:
IP20
Suhu pengoperasian:
-10°~40°℃(14°~ 104 °F)Kelembaban:10%~95%; non-kondensasi
Catu daya:
+24VDC (±10%), daya <3W
Menampilkan:
Layar OLED titik penuh 0,96 inci 128*64, mendukung menu tampilan Cina dan Inggris
papan ketik:
4 tombol sentuh
Resolusi tampilan:
99.999
Sinyal masukan:
Sinyal tegangan diferensial 0~3mV/V (Sel beban pengukur regangan resistansi)
Kemampuan berkendara maksimal:
Mendorong hingga 1~4 sel beban (350Ω)
Tingkat Konversi A/D:
120Hz
Tegangan eksitasi:
5VDC
Masukan minimal:
0,6μV/hari
Pelabuhan komunikasi:
RS-485, Tingkat Baud 4800-19,200
Com. protokol:
MODBUS RTU, Lanjutkan ketik
Platform penimbangan:
platform analog lpc
Compact Weighing Transmitter With Multi-Output & LED / OLED Display Options HK140

Features& Applications


    • Suitable for various static weighing control systems, such as in mixing plants and non-explosion-proof chemical/pharmaceutical reactor weighing.

    • Ideal for low-speed force measurement systems, including static presses and process force control in automotive and industrial applications.

      • Compact design with standard 35mm DIN-rail installation for easy setup.

      • Supports RS485 communication interface with Modbus RTU protocol (output protocol customizable).

      • Offers a variety of analog signal outputs: 0–5V, 0–10V, ±5V, ±10V, 0–20mA, 4–20mA, and 0–24mA.

      • High-speed AD acquisition at 120 times/second with strong anti-interference performance.

      • Optional LED or OLED display with Chinese/English menu and user-friendly interface.



Sereen & Keyboard



Compact Weighing Transmitter With Multi-Output & LED / OLED Display Op</span></strong></span></p> <p><span style=Interface



Compact Weighing Transmitter With Multi-Output & LED / OLED Display Op</span></strong></span></p> <p><br></p> <p><span style=Dimensions (mm)

Compact Weighing Transmitter With Multi-Output & LED / OLED Display Op</p> <p><br></p> <p><img src=Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:


  1. The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
  2. High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
  3. The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
  4. An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
  5. The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
  6. A shipping label containing your address and product information will be prominently affixed to the outer carton.
  7. We will arrange shipment through a reputable logistics service provider.


After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
