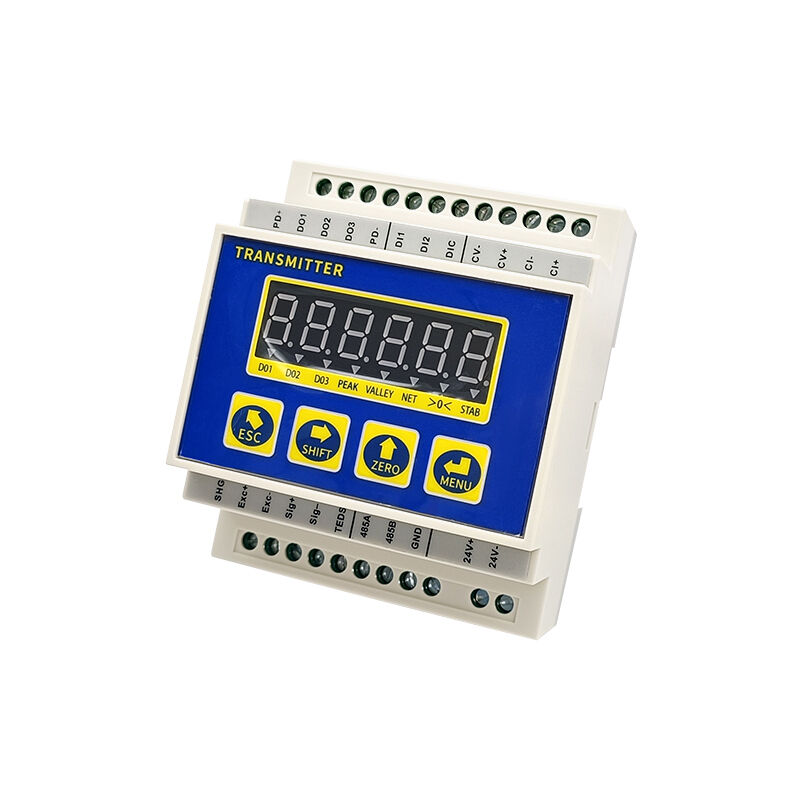

Multi‑I/O Weighing Transmitter For High‑Precision Batching Systems DT301PW

Name: Multi‑I/O Weighing Transmitter For High‑Precision Batching Systems DT301PW
Brand: Brans Measuring And Controlling Technology Co., Ltd
SKU: DT301PW
Price: 78.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: Brans

Nomor model: DT301PW

Dokumen: DT301PW Signal Transmitter-...NS.pdf

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 buah

Waktu pengiriman: seminggu

Syarat-syarat pembayaran: T/T

Menyediakan kemampuan: 300pcs/Bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high-precision weighing transmitter, multi-I/O batching transmitter, DT301PW weighing transmitter


Menampilkan:	Tampilan LED 6 digit, tinggi 0,32''	Resolusi tampilan:	100.000
Platform penimbangan:	1 platform analog pe	Min. interval input:	0,6μV/hari
Beban masukan:	Mendorong hingga 1~4 sel beban (350Ω)	Output analog:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Pelabuhan komunikasi:	RS-232, Tingkat Baud4800-115,200;RS-485, Tingkat Baud4800-115.200:	Com. protokol:	MODBUS-RTU、Lanjutkan mengetik
Tingkat Konversi A/D:	6-1600Hz	Tegangan eksitasi:	5VDC
Catu daya:	+24VDC(±10%), daya <3W	papan ketik:	4 tombol sentuh
Jangkauan suhu operasi:	-10°~40°C(14°~104F); Kelembaban: 10%~95%; non-kondensasi	I/O:	2 masukan dan 3 keluaran
Bahan:	Perumahan plastik	Kelas IP:	IP20

Menampilkan:	Tampilan LED 6 digit, tinggi 0,32''
Resolusi tampilan:	100.000
Platform penimbangan:	1 platform analog pe
Min. interval input:	0,6μV/hari
Beban masukan:	Mendorong hingga 1~4 sel beban (350Ω)
Output analog:	0-10V.-10V~+10V.0-20mA,4-20mA,0-10mA
Pelabuhan komunikasi:	RS-232, Tingkat Baud4800-115,200;RS-485, Tingkat Baud4800-115.200:
Com. protokol:	MODBUS-RTU、Lanjutkan mengetik
Tingkat Konversi A/D:	6-1600Hz
Tegangan eksitasi:	5VDC
Catu daya:	+24VDC(±10%), daya <3W
papan ketik:	4 tombol sentuh
Jangkauan suhu operasi:	-10°~40°C(14°~104F); Kelembaban: 10%~95%; non-kondensasi
I/O:	2 masukan dan 3 keluaran
Bahan:	Perumahan plastik
Kelas IP:	IP20

Multi‑I/O Weighing Transmitter For High‑Precision Batching Systems DT301PW

Features& Applications

- Standard 35mm DIN-rail mounting.
- Supports weight-free calibration for easy setup, operated via 4 touch buttons.
- Multiple analog outputs: 0–10V, ±10V, 4–20mA, 0–20mA, 0–10mA.
- Communication interfaces: RS232 and RS485, supporting Modbus RTU protocol.
- Offers 2 inputs and 3 outputs for alarm or control functions (e.g., valves, gates).
- Powered by DC24V for stable and secure operation.
- High precision, strong stability, and excellent anti-interference performance.
- Ideal for high-precision weighing and batching systems.
- Suitable for multi-node weighing equipment with centralized installation.

Dimensions (mm)

Multi‑I/O Weighing Transmitter For High‑Precision Batching Systems DT301PW 0

Wiring Code

Shipping & Packaging

To ensure the safe delivery of your instrument, we will implement the following packaging measures:

The instrument will be securely placed inside a dedicated cardboard box to prevent collisions and compression during transit.
High-density foam will fill all interior corners and gaps to prevent movement of the instrument within the box.
The instrument itself will be sealed in an anti-static bag for moisture and dust protection, accompanied by desiccant packets.
An additional layer of bubble wrap will be wrapped around the exterior for enhanced cushioning and protection.
The carton will be securely sealed with strong adhesive tape to prevent accidental opening during transit.
A shipping label containing your address and product information will be prominently affixed to the outer carton.
We will arrange shipment through a reputable logistics service provider.

After shipment, you will receive a tracking number to monitor the delivery status at any time. We recommend arranging for someone to be available to receive the package during the estimated delivery window to ensure successful delivery.
